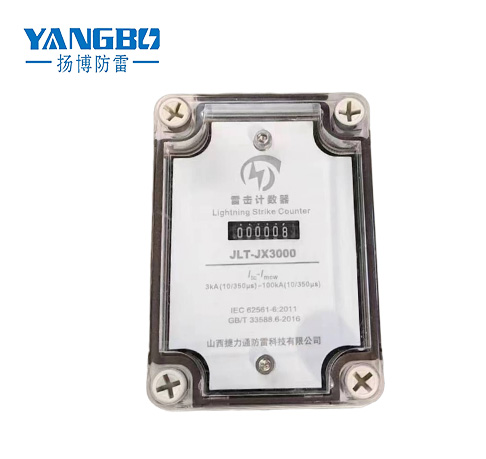

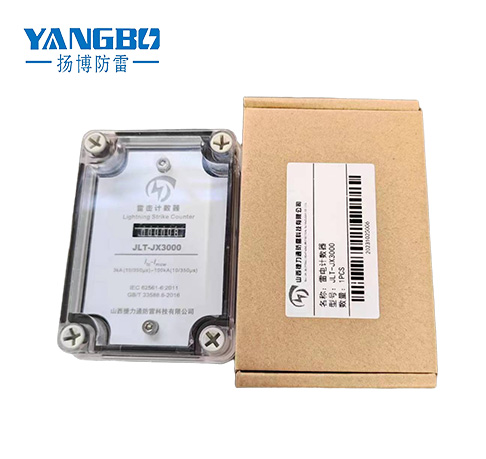

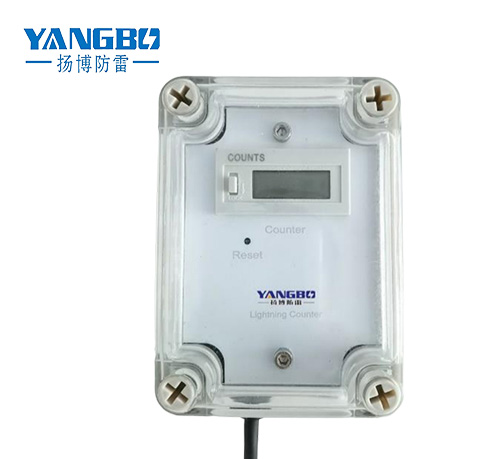

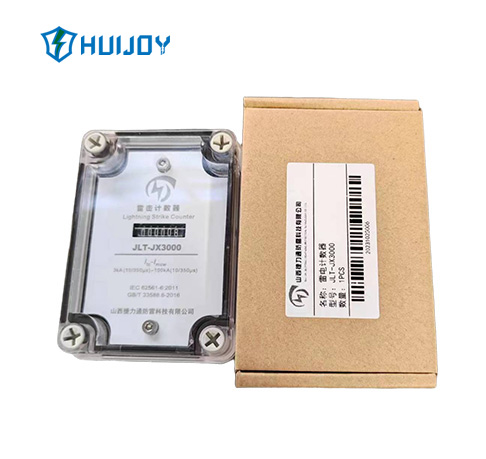

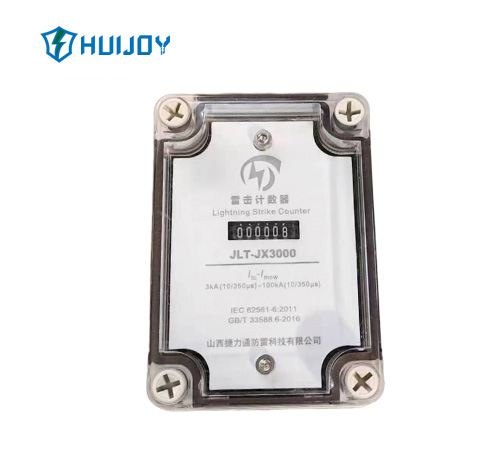

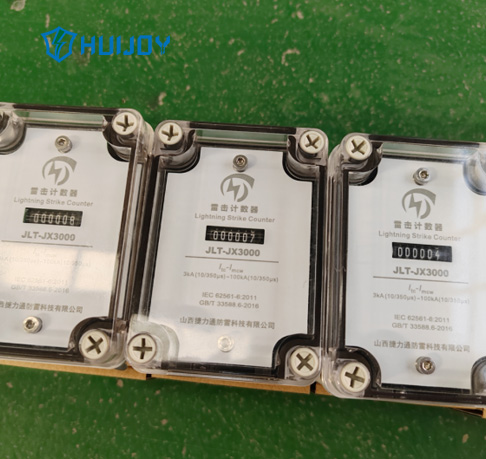

The product is used for direct lightning strike counting of external lightning protection systems such as lightning arrester and lead-off line.
Phone:
006588662519
Installation preparation: please read the instruction carefully before installation and prepare a Phillips head screwdriver.
1. Lightning counter can be fixed in 40X4 flat steel or 10-90mm2 cable, round steel.
2. Remove the transparent cover with a Phillips head screwdriver, loosen the screws in the 4 diagonal holes, and adjust or remove the lightning counter mounting bracket.
3. Put the collected conductor (Copper Bar, flat steel, round steel, cable) in the fixed bracket, tighten the screws in 4 diagonal holes to fix the counter and then install the transparent cover of the counter.
4. This product is installed in the lightning rod, lightning belt, down wire, used to monitor and record the situation of surge voltage intrusion in the power line, can also be installed in a variety of surge protection (SPD) grounding wire, monitor and record the number of lightning incursions.
5. Must be to monitor the wire from the counter and fixed between the bracket, unlimited direction.
6. Lightning strike counter factory will have 1-10 lightning test records, this counter can not clear zero.
7. This product does not need to debug, generally after access is in working state, when the counter record to [999999] , please replace the lightning strike counter with the same specification
| Product name | Lightning strike counter | |
| Model | LSC-3000 | |
| Collection form | Built-in sensors, back sensing | |
| Maximum count (six digits) | 999 999 | |
| Minimum count induced current Itc | 2kA（10/350μs） | |
| Maximum count induced currentImcw | 200kA（10/350μs） | |
| Wiring capacity | Wires | 10-90mm2 |
| Copper Strip | ≤4*40mm | |
| Temperature (humidity) range | -30℃…+80℃，Relative humidity≤95% | |
| IP level | IP 67 | |
| Shell material | PlasticABS+PC | |
| Size | 110*80*80(Including stent） | |
